how to design and build the "gear" "skew gear" "helical gear" molds
The tips for design and build Gear molds
Aug 31st,20182375 Views

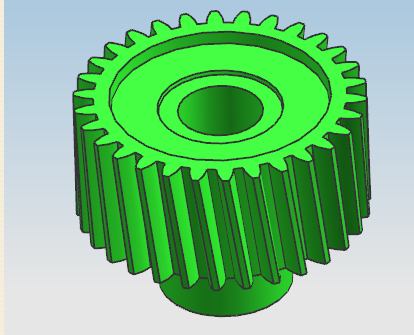

How to design the gear mold like this image?

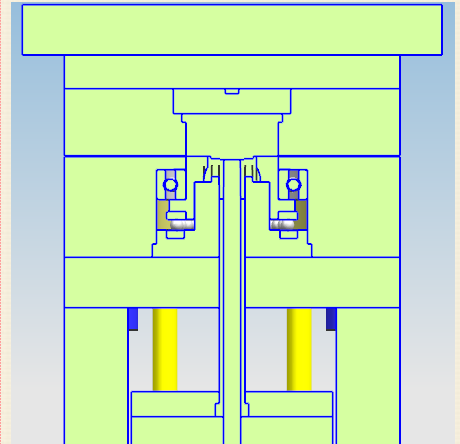

Let's check out. Pin-Point gate is first Make round insert in core side,which is easy for wire-cutting skews

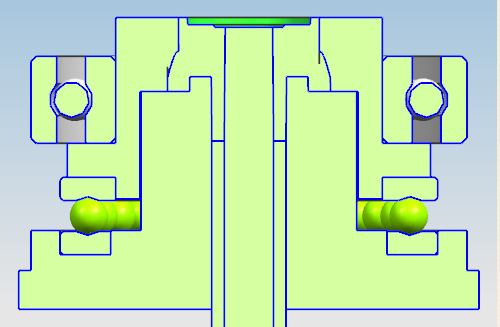

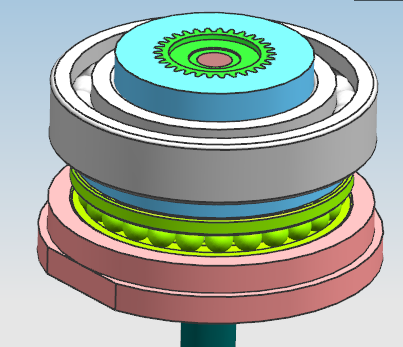

Thirdly, Add 2 more ball bearing to make sure the insert can be rotated.

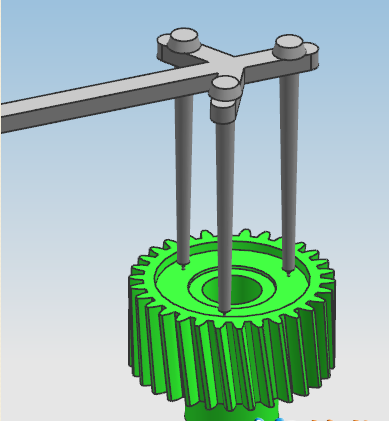

Finally, add a sleeve pin in the middle. Bingo..
Pin-Point gate is first

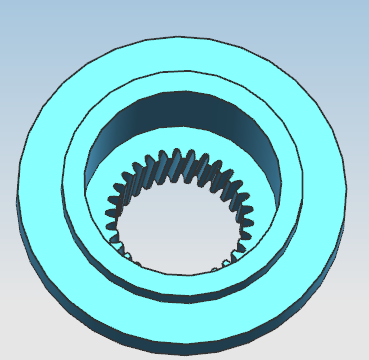

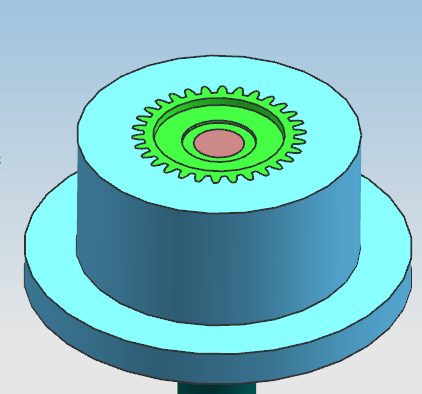

Make round insert in core side,which is easy for wire-cutting skews
Add 2 more ball bearing to make sure the insert can be rotated.
